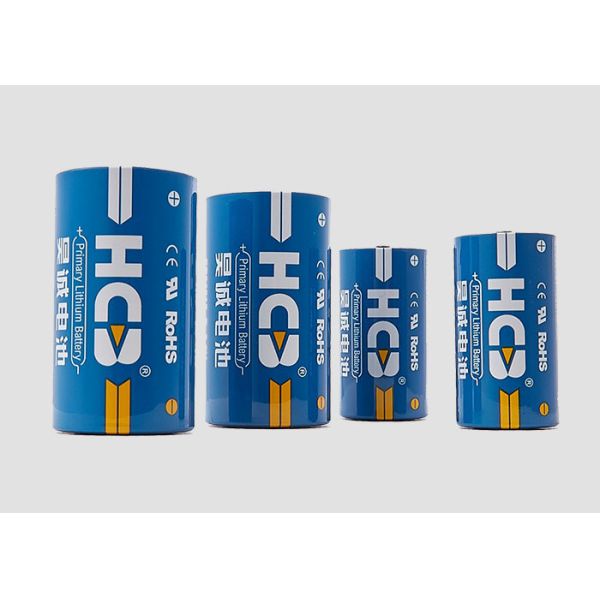

3.6 V Li Socl2 Lithium Battery

    Buy cheap 3.6 V Li Socl2 Lithium Battery from wholesalers

    Buy cheap 3.6 V Li Socl2 Lithium Battery from wholesalers
    • Buy cheap 3.6 V Li Socl2 Lithium Battery from wholesalers

    3.6 V Li Socl2 Lithium Battery

    Ask Lasest Price
    Brand Name : HCB
    Model Number : ER34615 / D Size
    Certification : RoHS/UN/CE/UL
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : Two millions units per month
    Delivery Time : 7-35 work days
    • Product Details
    • Company Profile

    3.6 V Li Socl2 Lithium Battery


    3.6 V ER34615 D Model AMR li socl2 lithium battery manufacturer For GSM GPRS NB - IoT LoRa

    Nominal Capacity19000mAh
    Battery discharged at continuous current 6.5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
    Nominal Voltage3.6 V
    Maximum Continuous Current300mA
    Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
    Maximum Pulse Discharge Current600mA
    Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
    Storage Condition

    Temperature ≤ 30℃

    Humidity ≤ 75%RH

    Operating Temperature-55℃ to +85℃
    Battery DimensionSee drawing on pag
    Max Weight105.0g
    Self-discharge Rate2%
    Max self-discharged rate at ambient temperature 23±2℃
    Shelf Life10 years
    Ambient temperature 23±2℃

    1. Battery Characteristic

    • High Voltage
    • Nominal voltage up to 3.6 V
    • High Energy Density
      Energy density up to 590 Wh/kg
    • Stable Operating Voltage
      More than 90% of the capacity could be output at a stable voltage
    • Wide Operating Temperature Range
      -55°C to +85°C
    • Long Shelf Life
      Self discharge rate is less than 2% per year at room temperature
      Glass-to-metal seal
      Bobbin and spiral structure is available for different applications

    2. Main Applications

    Utility metering

    Electricity, gas, water, heat, calorimeters; heat cost allocators; automatic meter reading; prepayment meters

    Tracking

    Electronic toll collection; data loggers; On-board units; trucks, containers, trailers; animals; personal

    Automotive

    Tire pressure monitoring systems; engine controllers; brake controllers; in-car computers; digital tachographs; belt straighteners

    Alarm and security systems

    Wireless alarms PIR; sensors/detectors; electronic safes; encryption systems

    Industrial automation Controllers; fault detectors; process logic control; Industrial PC’s

    Office automation Point of sale terminals; cash machines; telephone key systems; telephone exchange boards

    Instrumentation

    Electronic scales; vending machines; gambling machines; taximeters

    Medical

    Dispensers; implantable devices; infusion pumps

    Off-shore

    Beacons; buoys; oil drilling/MWD; life jacket lights

    Military

    Fuzes; mines; targeting devices; night vision goggles; gas masks

    High end consumer

    Set top boxes; sports electronics; diving computers


    3. Customer Benefits

    HCB has focused its ongoing efforts on promoting the understanding and further development of lithium batteries. This determination offers to the customer a number of decisive benefits such as:

    • Access to over 18 years of experience in research and development, production and marketing

    • Adaptability and reliability in meeting rapidly evolving customer needs

    • Detailed technical support in terms of design and application - before, during and after the purchase

    • Highly qualified experts available for support on short notice

    • Customized production of single- and multi-cell batteries to meet specific requirements

    • Reliable delivery.


    4. Company Advantages

    Quality management system of HCB is conformity with GB/T19001-2008/ISO9001:2008 standard;
    HCB Environment Management System meets the standard GB/T24001-2004/ISO14001:2004;
    The battery can pass drop test.


    5. Suggestions

    For successful use of a battery, the co-operation between the supplier and the customer must commence at the earliest possible point: at times it is simply more economical to design a circuit for the characteristics of the best suitable energy supply, rather than having to forgo its advantages because it is too late for changes.
