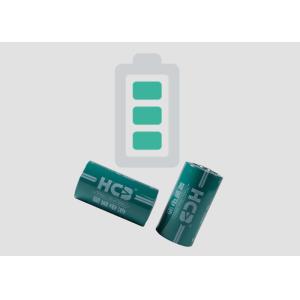

    3.0V Nominal Voltage Lithium Mno2 Battery High Capacity No Passivation Effect Gas Meter NB-IoT Meter and Sensor

    Ask Lasest Price
    Brand Name : HCB
    Model Number : CR26500/C Model
    Certification : UN/CE/UL/RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : Two millions units per month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    3.0V Nominal Voltage Lithium Mno2 Battery High Capacity No Passivation Effect Gas Meter NB-IoT Meter and Sensor

    CR26500 5000mAh Cylindrical Li-MnO2 Batteries UN UL CE RoHS for Security


    Nominal Capacity5000mAh
    Battery discharged at continuous current 10mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
    Nominal Voltage3.0 V
    Maximum Continuous Current2000mA
    Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
    Maximum Pulse Discharge Current3000mA
    Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
    Storage Condition

    Temperature ≤ 30℃

    Humidity ≤ 75%RH

    Operating Temperature-40℃ to +85℃
    Battery DimensionSee drawing on pag
    Max Weight62.0g
    Self-discharge Rate2%
    Max self-discharged rate at ambient temperature 23±2℃
    Shelf Life10 years
    Ambient temperature 23±2℃

    1. Battery Characteristic


    • High Voltage

    Nominal voltage up to 3.0 V

    • High Energy Density

    Specific energy density up to 260 Wh/kg

    • Wide Operating Temperature Range

    -40°C to +85°C

    • Long Shelf Life

    Self discharge rate is less than 2% per year at room temperature
    High capacity, stable performance, no passivation effect
    Glass-to-metal seal
    Bobbin and spiral structure is available for different applications


    2. Main Applications

    • Military & Defence

    Portable radio communications, night vision equipment & thermal images, torches & lamps, etc.


    • Monitoring

    Animal health monitoring system,forest fire alert, smart irrigation system, etc.


    3. Use Warning

    • This battery is a non-rechargeable battery.
    • DO NOT CHARGE THE BATTERY!
    • Do not use if the battery casing is damaged.
    • Please discharge the battery for a few minutes with 100mA.
    • Don't use different models of battery in series.

    4. Characteristics
    Lithium is the lightest of metals and it floats on water. It also has the greatest electrochemical potential which makes it one of the most reactive of metals. These properties give Lithium the potential to achieve very high energy and power densities permitting batteries with very long useful life and small cell packages.
