    Cylindrical Er34615m Lithium Battery

    Ask Lasest Price
    Brand Name : HCB
    Model Number : ER34615M / D Model
    Certification : UN/RoHS/CE/UL
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : Two millions units per month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    Cylindrical Er34615m Lithium Battery


    Cylindrical ER34615M li-socl2 battery Lithium Battery 14000mAh for Smart Meters


    Cylindrical ER34615M li-socl2 battery Lithium Battery 14000mAh for Smart Meters​


    Nominal Capacity14000mAh
    Battery discharged at continuous current 20mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
    Nominal Voltage3.6 V
    Maximum Continuous Current2000mA
    Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
    Maximum Pulse Discharge Current4000mA
    Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
    Storage Condition

    Temperature ≤ 30℃

    Humidity ≤ 75%RH

    Operating Temperature-55℃ to +85℃

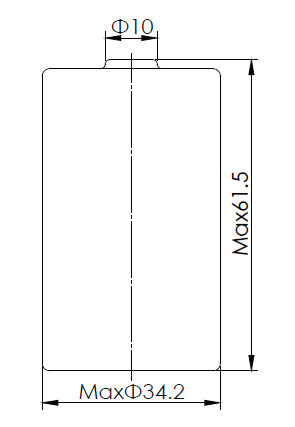

    Battery DimensionSee drawing on pag
    Max Weight108.0g
    Self-discharge Rate2%
    Max self-discharged rate at ambient temperature 23±2℃
    Shelf Life10 years
    Ambient temperature 23±2℃

    1. Battery Characteristic

    High Voltage
    • Nominal voltage up to 3.6 V
    High Energy Density
    • Energy density up to 590 Wh/kg
    Stable Operating Voltage
    • More than 90% of the capacity could be output at a stable voltage
    Wide Operating Temperature Range
    • -55°C to +85°C
    Long Shelf Life
    • Self discharge rate is less than 2% per year at room temperature
    • Glass-to-metal seal
    • Bobbin and spiral structure is available for different applications


    2. Main Applications

    • Oil & Gas

    Well pressure meters, float meters, logging while drilling(LWD), measure while drilling(MWD), etc.

    • Military & Defence

    Portable radio communications, night vision equipment & thermal images, torches & lamps, etc.


    3. Manufacturing Advantages

    • HCB Battery Co., Ltd. was founded in 2001. As a leading primary lithium battery manufacturer and solution provider in China, HCB remains dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.
    • With every improvement that is made, HCB continues to pursue perfection. Technological development & innovation are of great importance to HCB. We have been focusing on providing reliable products & services to the customers worldwides for more than 22 years.
